1054540101

Affinity Medical Technologies - a Molex company

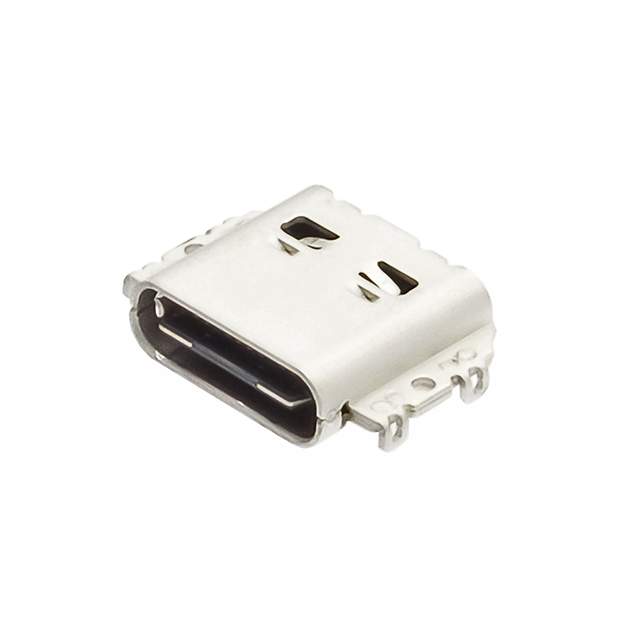

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1054540101
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	TYPE C USB RECEPTACLE MID-MOUNT
Datasheets:	1.1054540101.pdf 2.1054540101.pdf 3.1054540101.pdf 4.1054540101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32239 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32239 pcs

Reference Price (In US Dollars)

1 pcs: $1.008

10 pcs: $0.968

25 pcs: $0.887

50 pcs: $0.847

100 pcs: $0.807

250 pcs: $0.706

500 pcs: $0.686

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.008

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1054540101

Part Number	1054540101	Manufacturer	Affinity Medical Technologies - a Molex company
Description	TYPE C USB RECEPTACLE MID-MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32239 pcs	Data sheet	1.1054540101.pdf 2.1054540101.pdf 3.1054540101.pdf 4.1054540101.pdf
Voltage - Rated	300VAC/DC	Termination	Solder
Specifications	USB 3.1 (USB 3.1 Gen 2, Superspeed+)	Shielding	Shielded
Shell/Shielding Material	Steel, Stainless	Series	105454
Packaging	Cut Tape (CT)	Other Names	WM17905CT
Operating Temperature	-30°C ~ 85°C	Number of Ports	1
Number of Contacts	24	Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal, Mid Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10000	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	Black	Ingress Protection	-
Gender	Receptacle	Features	-
Detailed Description	USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Surface Mount, Right Angle	Current Rating	0.25A, 1.25A, 5A
Contact Finish	Gold	Connector Type	USB - C
