1053132308

Affinity Medical Technologies - a Molex company

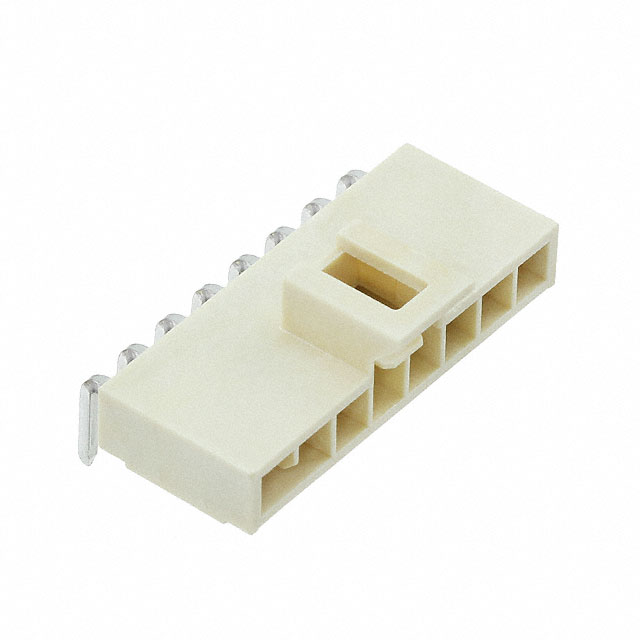

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053132308
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR RA SGL 8CKT 30AU WH
Datasheets:	1.1053132308.pdf 2.1053132308.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35844 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35844 pcs

Reference Price (In US Dollars)

1 pcs: $1.037

84 pcs: $0.87

168 pcs: $0.828

504 pcs: $0.704

1008 pcs: $0.601

5040 pcs: $0.539

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.037

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053132308

Part Number	1053132308	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR RA SGL 8CKT 30AU WH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35844 pcs	Data sheet	1.1053132308.pdf 2.1053132308.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105313	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105313-2308 WM15161
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Material Flammability Rating	-
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.149" (3.78mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Guide
Fastening Type	Latch Lock	Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	59.0µin (1.50µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
