1053132104

Affinity Medical Technologies - a Molex company

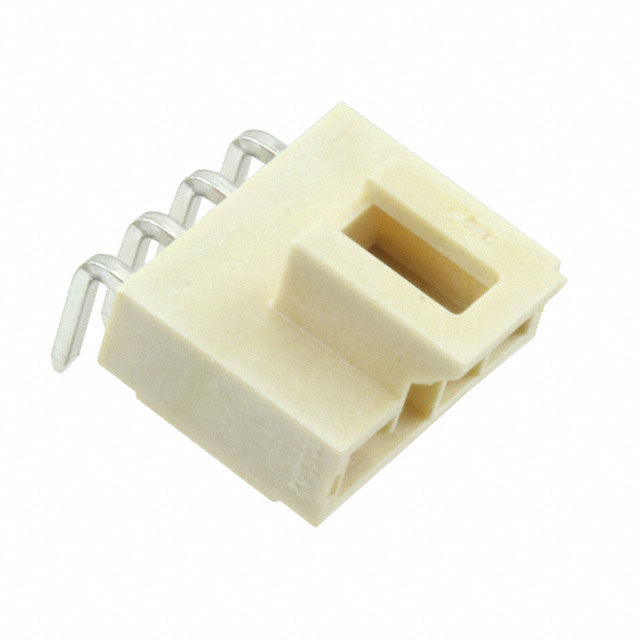

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053132104
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT RIGHT ANGLE HEADER, TH
Datasheets:	1.1053132104.pdf 2.1053132104.pdf 3.1053132104.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72590 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72590 pcs

Reference Price (In US Dollars)

1 pcs: $0.466

10 pcs: $0.409

156 pcs: $0.353

624 pcs: $0.289

1092 pcs: $0.257

5148 pcs: $0.224

10140 pcs: $0.213

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.466

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053132104

Part Number	1053132104	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT RIGHT ANGLE HEADER, TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72590 pcs	Data sheet	1.1053132104.pdf 2.1053132104.pdf 3.1053132104.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105313	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105313-2104 WM16902
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.149" (3.78mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	59.0µin (1.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
