1041125617

Affinity Medical Technologies - a Molex company

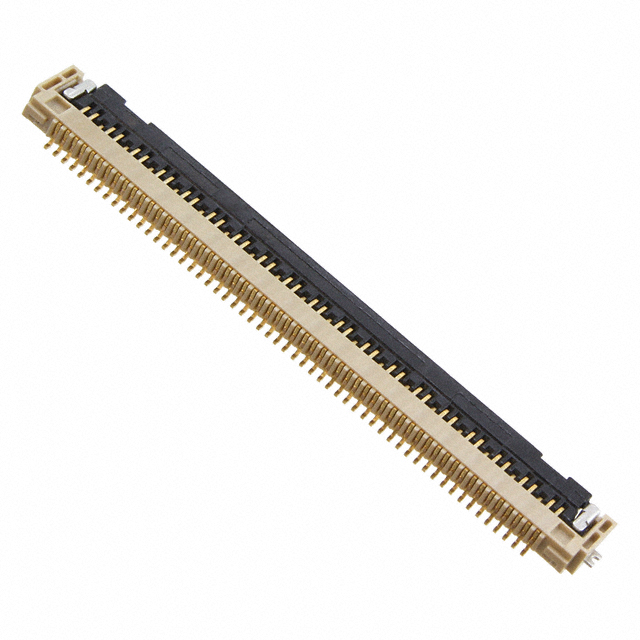

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1041125617
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 56POS 0.50MM R/A
Datasheets:	1.1041125617.pdf 2.1041125617.pdf 3.1041125617.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6825 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6825 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1041125617

Part Number	1041125617	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 56POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6825 pcs	Data sheet	1.1041125617.pdf 2.1041125617.pdf 3.1041125617.pdf
Voltage Rating	50V	Termination	Solder
Series	104112	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	104112-5617 WM9412TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	56
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Locking Feature	Flip Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	Natural
Height Above Board	0.059" (1.50mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	56 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A per Contact
Contact Material	Phosphor Bronze	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Color	Black
