1040910520

Affinity Medical Technologies - a Molex company

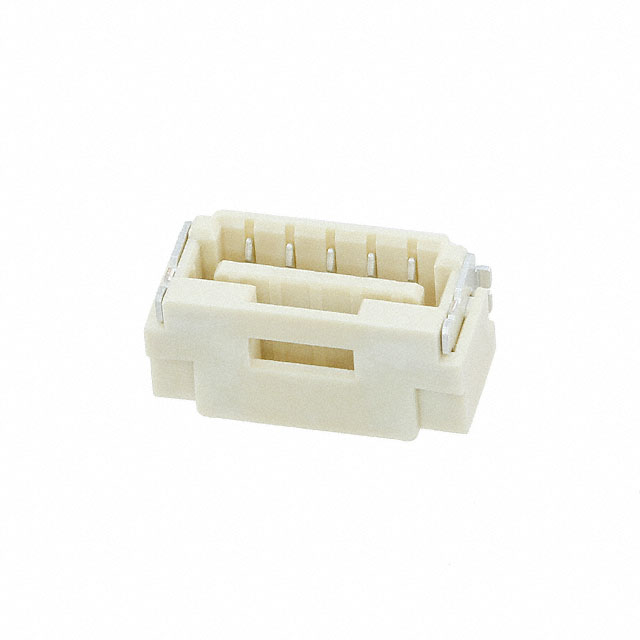

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1040910520
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.25 WTB R/A CONN. 5P HEADER ASS
Datasheets:	1.1040910520.pdf 2.1040910520.pdf 3.1040910520.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63981 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63981 pcs

Reference Price (In US Dollars)

1 pcs: $0.556

10 pcs: $0.505

100 pcs: $0.433

500 pcs: $0.361

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.556

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1040910520

Part Number	1040910520	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.25 WTB R/A CONN. 5P HEADER ASS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63981 pcs	Data sheet	1.1040910520.pdf 2.1040910520.pdf 3.1040910520.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	IllumiMate 104091	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM12339CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free	Insulation Height	0.159" (4.05mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Non-Gendered	Contact Shape	-
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical
