1040860410

Affinity Medical Technologies - a Molex company

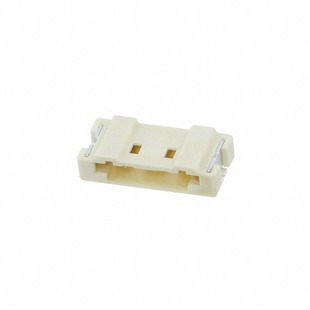

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1040860410
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.25 WTB CONN HEADER ASS'Y 4P
Datasheets:	1040860410.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	84120 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 84120 pcs

Reference Price (In US Dollars)

1 pcs: $0.372

10 pcs: $0.327

25 pcs: $0.307

50 pcs: $0.295

100 pcs: $0.282

250 pcs: $0.256

500 pcs: $0.231

1000 pcs: $0.205

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1040860410

Part Number	1040860410	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.25 WTB CONN HEADER ASS'Y 4P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84120 pcs	Data sheet	1040860410.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	IllumiMate 104086	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM12338CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free	Insulation Height	0.096" (2.44mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.102" (2.60mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical
