10-89-1301

Affinity Medical Technologies - a Molex company

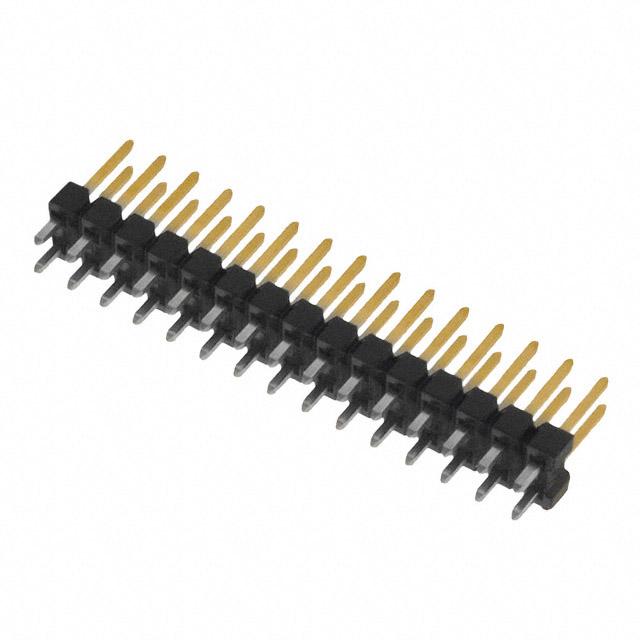

Image may be representation. See specifications for product details.

Product Overview

Part Number:	10-89-1301
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 30POS .100 VERT GOLD
Datasheets:	10-89-1301.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5631 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5631 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 10-89-1301

Part Number	10-89-1301	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 30POS .100 VERT GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5631 pcs	Data sheet	10-89-1301.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 8624	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.437" (11.10mm)	Other Names	0010-89-1301 0010-89-1301-E 0010891301 0010891301-E 10-89-1301-E 10-89-1301-ND 10891301 10891301-E WM6830
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.090" (2.29mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 30 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.107" (2.71mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	74.8µin (1.90µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
