10-18-1120

Affinity Medical Technologies - a Molex company

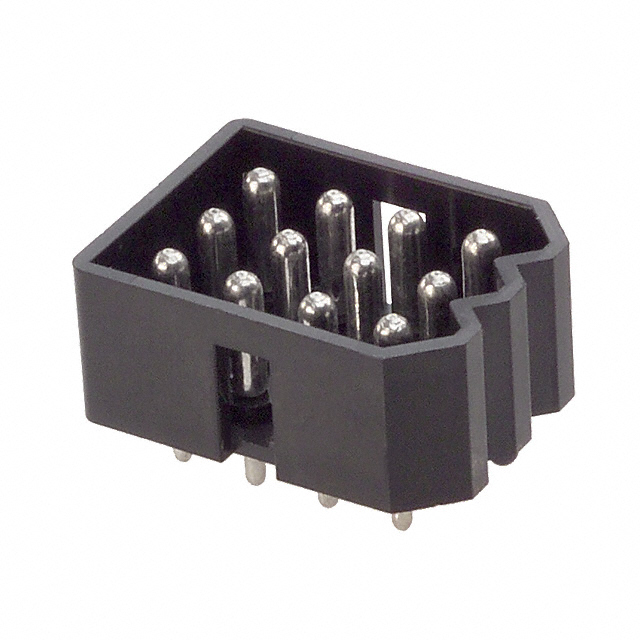

Image may be representation. See specifications for product details.

Product Overview

Part Number:	10-18-1120
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS .093 VERT TIN
Datasheets:	10-18-1120.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36363 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36363 pcs

Reference Price (In US Dollars)

1 pcs: $1.011

10 pcs: $0.971

100 pcs: $0.809

500 pcs: $0.688

1000 pcs: $0.587

5000 pcs: $0.526

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.011

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 10-18-1120

Part Number	10-18-1120	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS .093 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36363 pcs	Data sheet	10-18-1120.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	3099	Row Spacing - Mating	0.198" (5.03mm)
Pitch - Mating	0.198" (5.03mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0010-18-1120 0010-18-1120-P 0010181120 0010181120-P 10-18-1120-P 10181120 10181120-P A30991201 WM1629
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.421" (10.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 12 position 0.198" (5.03mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Cartridge Brass	Contact Length - Post	0.170" (4.32mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Telecommunications
