0936012539

Affinity Medical Technologies - a Molex company

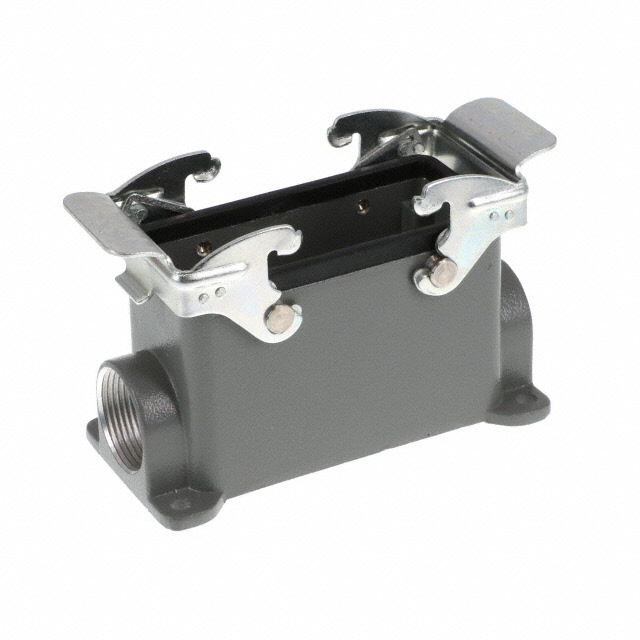

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0936012539
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN BASE SIDE ENTRY SZ16B PG21
Datasheets:	0936012539.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3133 pcs

Reference Price (In US Dollars)

1 pcs: $9.703

10 pcs: $8.759

25 pcs: $8.392

50 pcs: $7.868

100 pcs: $7.606

250 pcs: $7.186

500 pcs: $6.976

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.703

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0936012539

Part Number	0936012539	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN BASE SIDE ENTRY SZ16B PG21	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3133 pcs	Data sheet	0936012539.pdf
Thread Size	PG21	Style	Side Entry
Size / Dimension	4.606" L x 2.244" W x 2.480" H (117.00mm x 57.00mm x 63.00mm)	Size	16B
Series	GWconnect	Packaging	Bulk
Other Names	0936012539-ND 7816.6324.0 93601-2539 936012539 WM21290	Operating Temperature	-40°C ~ 125°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	29 Weeks
Lock Location	Locking Clip (2) on Base Bottom	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP66 - Dust Tight, Water Resistant	Housing Material	Aluminum Alloy, Die Cast
Housing Finish	Powder Coated	Housing Color	-
Features	-	Connector Type	Base - Box Mount
