0934050508

Affinity Medical Technologies - a Molex company

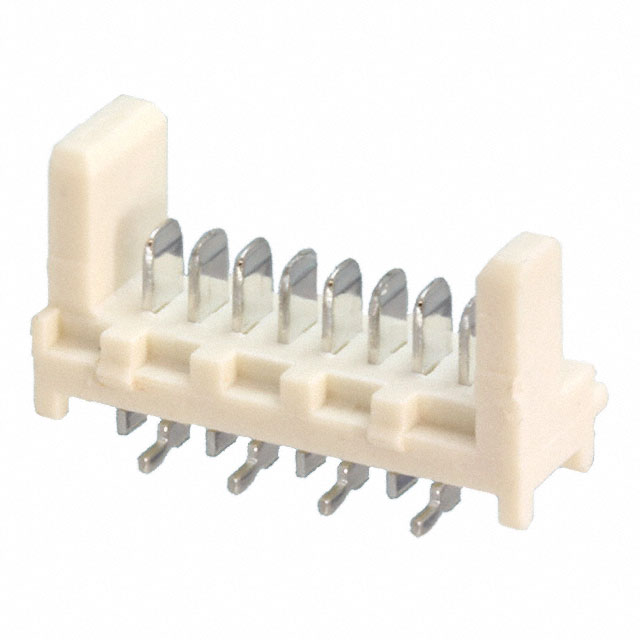

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0934050508
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	8POS REVERSE PICOFLEX SMD HDR
Datasheets:	1.0934050508.pdf 2.0934050508.pdf 3.0934050508.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	176127 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 176127 pcs

Reference Price (In US Dollars)

1800 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.221

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0934050508

Part Number	0934050508	Manufacturer	Affinity Medical Technologies - a Molex company
Description	8POS REVERSE PICOFLEX SMD HDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	176127 pcs	Data sheet	1.0934050508.pdf 2.0934050508.pdf 3.0934050508.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex 93405	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	093405-0508 93405-0508 934050508 WM9340TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon, Glass Filled
Insulation Height	0.203" (5.16mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 8 position 0.050" (1.27mm)
Current Rating	1.2A	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Cartridge Brass
Contact Length - Post	-	Contact Length - Mating	0.085" (2.15mm)
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
