0908143016

Affinity Medical Technologies - a Molex company

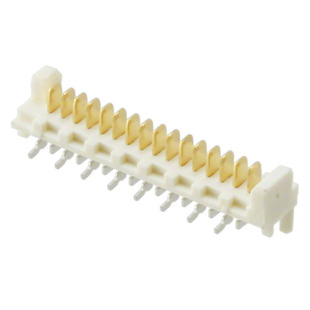

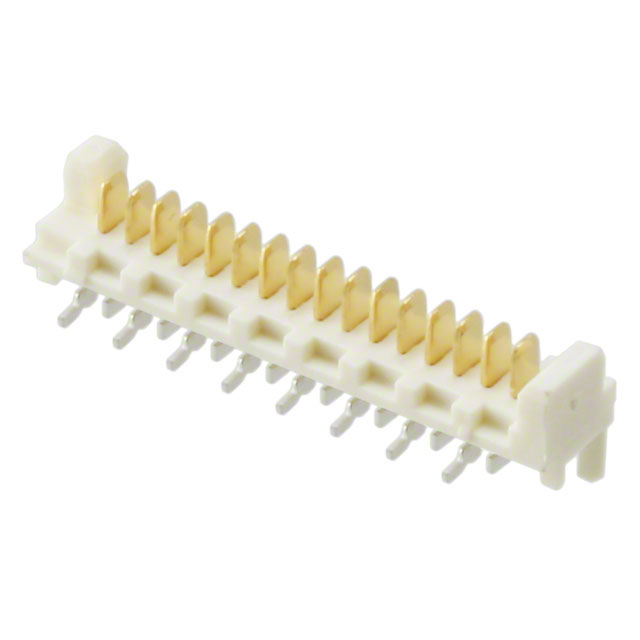

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0908143016
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 16PS 1.27MM SMD GOLD
Datasheets:	1.0908143016.pdf 2.0908143016.pdf 3.0908143016.pdf 4.0908143016.pdf 5.0908143016.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4711 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4711 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0908143016

Part Number	0908143016	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 16PS 1.27MM SMD GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4711 pcs	Data sheet	1.0908143016.pdf 2.0908143016.pdf 3.0908143016.pdf 4.0908143016.pdf 5.0908143016.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex PF-50 90814	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	090814-3016 090814-3016-E 0908143016-E 90814-3016 90814-3016-E 90814-3016-ND 908143016 908143016-E WM19266
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon, Glass Filled
Insulation Height	0.252" (6.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Guide
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 16 position 0.050" (1.27mm)
Current Rating	1.2A	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Cartridge Brass
Contact Length - Post	-	Contact Length - Mating	0.085" (2.15mm)
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	24.0µin (0.61µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Palladium-Nickel
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
