0906633261

Affinity Medical Technologies - a Molex company

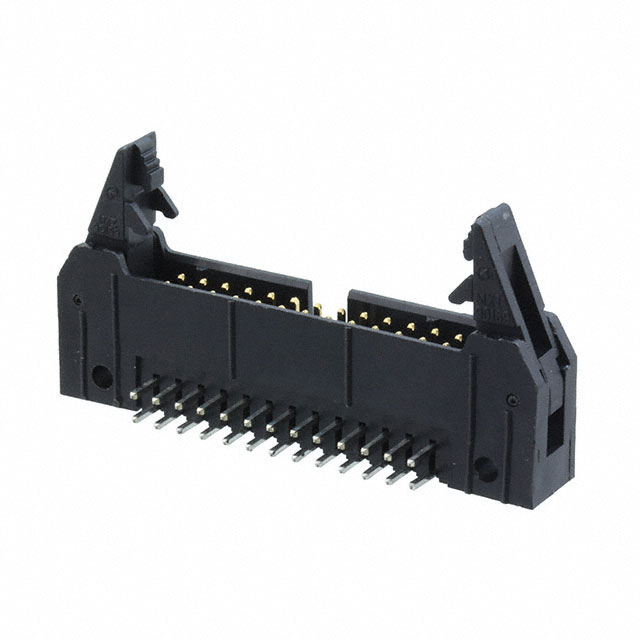

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0906633261
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	QF50 SRD HDR RA KEY .1AU 26POS
Datasheets:	0906633261.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33882 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33882 pcs

Reference Price (In US Dollars)

1 pcs: $1.008

10 pcs: $0.968

100 pcs: $0.807

500 pcs: $0.686

1000 pcs: $0.585

5000 pcs: $0.525

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.008

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0906633261

Part Number	0906633261	Manufacturer	Affinity Medical Technologies - a Molex company
Description	QF50 SRD HDR RA KEY .1AU 26POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33882 pcs	Data sheet	0906633261.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	QF 50 90663	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0906-63-3261 090663-3261 0906633261-ND 906-63-3261 90663-3261 906633261 WM10821
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.335" (8.51mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.200" (5.08mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
