0906631201

Affinity Medical Technologies - a Molex company

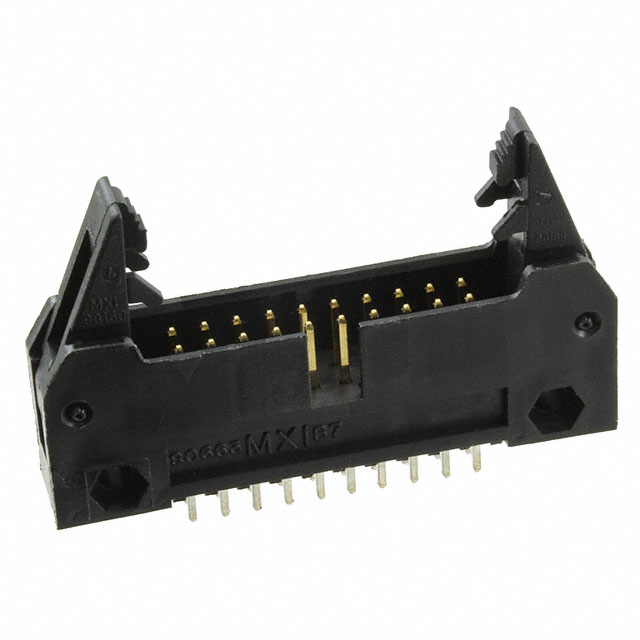

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0906631201
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	QF50 SRD HDR VT .1AU 20POS
Datasheets:	0906631201.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37067 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37067 pcs

Reference Price (In US Dollars)

1 pcs: $0.834

10 pcs: $0.757

100 pcs: $0.649

504 pcs: $0.541

1008 pcs: $0.463

5040 pcs: $0.411

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.834

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0906631201

Part Number	0906631201	Manufacturer	Affinity Medical Technologies - a Molex company
Description	QF50 SRD HDR VT .1AU 20POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37067 pcs	Data sheet	0906631201.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	QF 50 90663	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.657" (16.70mm)	Other Names	0906-63-1201 090663-1201 0906631201-ND 906-63-1201 90663-1201 906631201 WM14741
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.642" (16.30mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole 20 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.200" (5.08mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
