0905721101

Affinity Medical Technologies - a Molex company

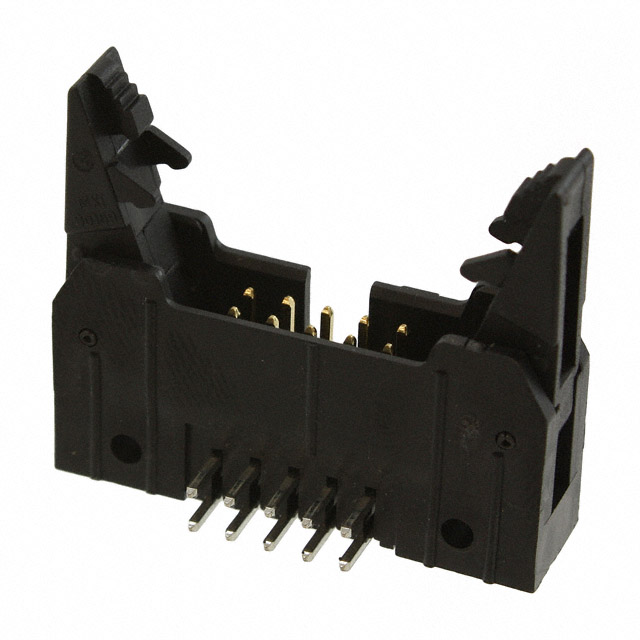

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0905721101
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 10POS 2.54MM R/A
Datasheets:	0905721101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31279 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31279 pcs

Reference Price (In US Dollars)

1 pcs: $1.12

10 pcs: $1.074

100 pcs: $0.895

560 pcs: $0.761

1120 pcs: $0.649

5040 pcs: $0.582

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.12

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0905721101

Part Number	0905721101	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 10POS 2.54MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31279 pcs	Data sheet	0905721101.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	QF 50 90572	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	090572-1101 90572-1101 905721101 WM8637
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.335" (8.51mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.228" (5.80mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
