0905711101

Affinity Medical Technologies - a Molex company

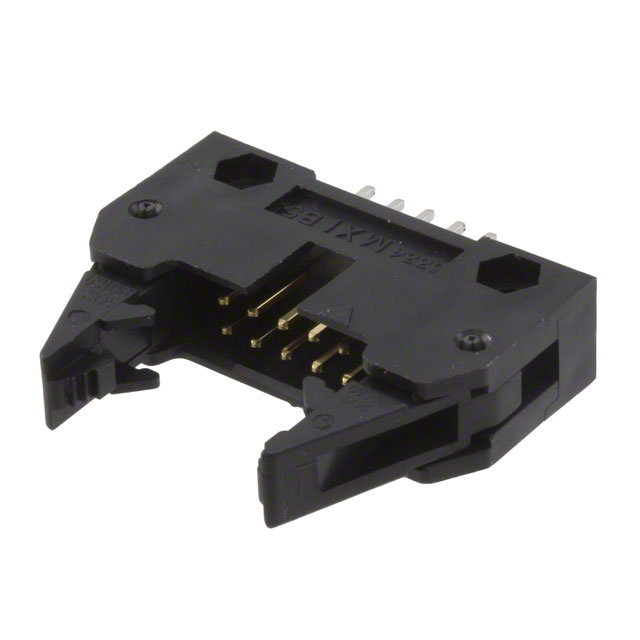

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0905711101
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 10POS 2.54MM VERT
Datasheets:	0905711101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44193 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44193 pcs

Reference Price (In US Dollars)

1 pcs: $0.889

10 pcs: $0.806

100 pcs: $0.69

720 pcs: $0.575

1440 pcs: $0.493

5040 pcs: $0.437

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.889

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0905711101

Part Number	0905711101	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 10POS 2.54MM VERT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44193 pcs	Data sheet	0905711101.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	QF 50 90571	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.657" (16.70mm)	Other Names	090571-1101 90571-1101 905711101 WM8631
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.642" (16.30mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.228" (5.80mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
