0903257026

Affinity Medical Technologies - a Molex company

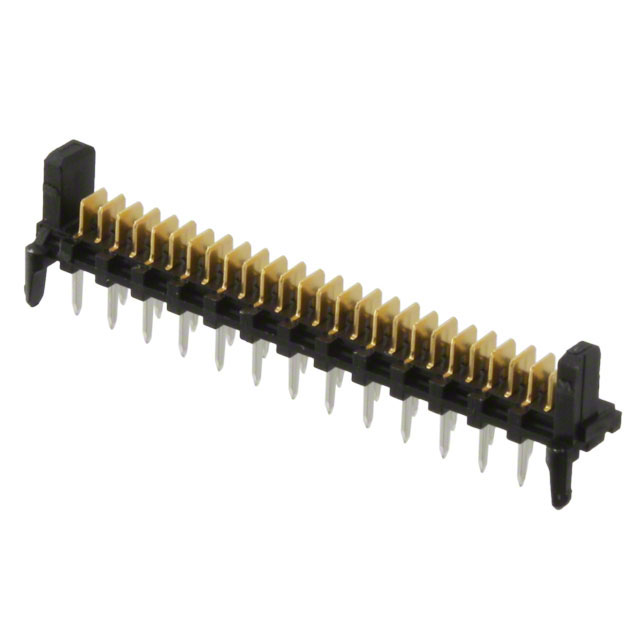

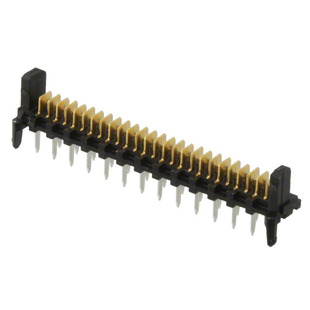

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0903257026
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 26PS 1.27MM GOLD T/H
Datasheets:	1.0903257026.pdf 2.0903257026.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36209 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36209 pcs

Reference Price (In US Dollars)

1 pcs: $1.084

10 pcs: $1.041

100 pcs: $0.867

500 pcs: $0.737

1764 pcs: $0.607

5292 pcs: $0.564

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.084

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0903257026

Part Number	0903257026	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 26PS 1.27MM GOLD T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36209 pcs	Data sheet	1.0903257026.pdf 2.0903257026.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 2 Wall
Series	Picoflex PF-50 90325	Row Spacing - Mating	-
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	090325-7026 090325-7026-E 0903257026-E 90325-7026 90325-7026-E 903257026 903257026-E WM19209
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.252" (6.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 26 position 0.050" (1.27mm)	Current Rating	1.2A
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	24.0µin (0.61µm)	Contact Finish - Post	-
Contact Finish - Mating	Palladium-Nickel	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
