0901512108

Affinity Medical Technologies - a Molex company

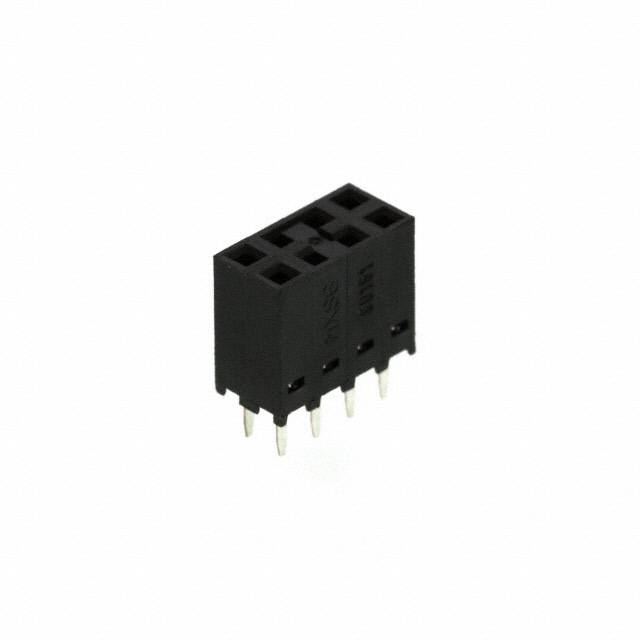

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0901512108
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN 8POS DUAL VERT TIN PCB
Datasheets:	0901512108.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22713 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22713 pcs

Reference Price (In US Dollars)

1 pcs: $1.579

10 pcs: $1.516

100 pcs: $1.263

500 pcs: $1.074

2080 pcs: $0.884

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.579

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0901512108

Part Number	0901512108	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN 8POS DUAL VERT TIN PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22713 pcs	Data sheet	0901512108.pdf
Voltage Rating	350V	Termination	Solder
Style	Board to Board	Series	C-Grid III 90151
Row Spacing - Mating	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	090151-2108 0901512108-ND 90151-2108 901512108 WM14836
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.335" (8.51mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin	Current Rating	3A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.114" (2.90mm)
Contact Finish Thickness - Post	40.0µin (1.02µm)	Contact Finish Thickness - Mating	40.0µin (1.02µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
