0901361104

Affinity Medical Technologies - a Molex company

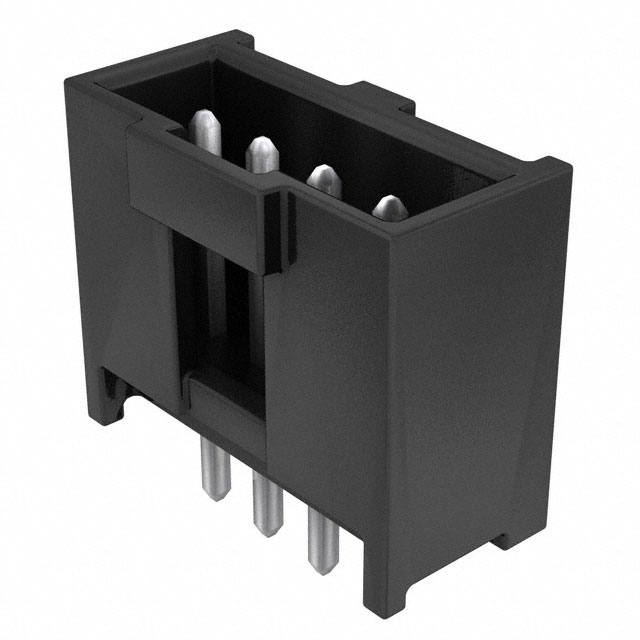

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0901361104
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS .100" STR TIN
Datasheets:	1.0901361104.pdf 2.0901361104.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	86292 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 86292 pcs

Reference Price (In US Dollars)

1 pcs: $0.376

10 pcs: $0.33

100 pcs: $0.285

500 pcs: $0.233

1920 pcs: $0.194

5760 pcs: $0.181

11520 pcs: $0.172

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.376

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0901361104

Part Number	0901361104	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS .100" STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	86292 pcs	Data sheet	1.0901361104.pdf 2.0901361104.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid III 90136	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.510" (12.95mm)	Other Names	090136-1104 090136-1104-E 0901361104-E 90136-1104 90136-1104-E 901361104 901361104-E WM8215
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.429" (10.90mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.266" (6.75mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose
