0901301208

Affinity Medical Technologies - a Molex company

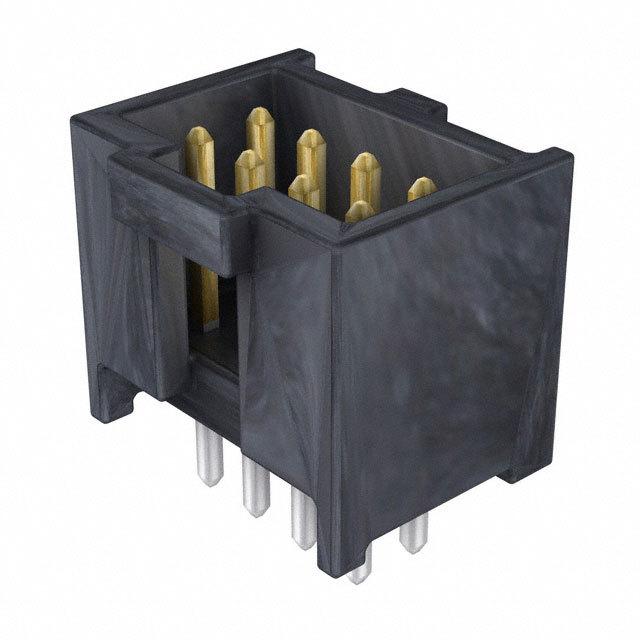

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0901301208
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS .100" STR GOLD
Datasheets:	1.0901301208.pdf 2.0901301208.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51012 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51012 pcs

Reference Price (In US Dollars)

1 pcs: $0.596

10 pcs: $0.541

100 pcs: $0.464

500 pcs: $0.387

2080 pcs: $0.32

6240 pcs: $0.294

10400 pcs: $0.287

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.596

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0901301208

Part Number	0901301208	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS .100" STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51012 pcs	Data sheet	1.0901301208.pdf 2.0901301208.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid III 90130	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.510" (12.95mm)	Other Names	090130-1208 090130-1208-E 0901301208-E 90130-1208 90130-1208-E 901301208 901301208-E WM8248
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.429" (10.90mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 8 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.266" (6.75mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose
