0901200127

Affinity Medical Technologies - a Molex company

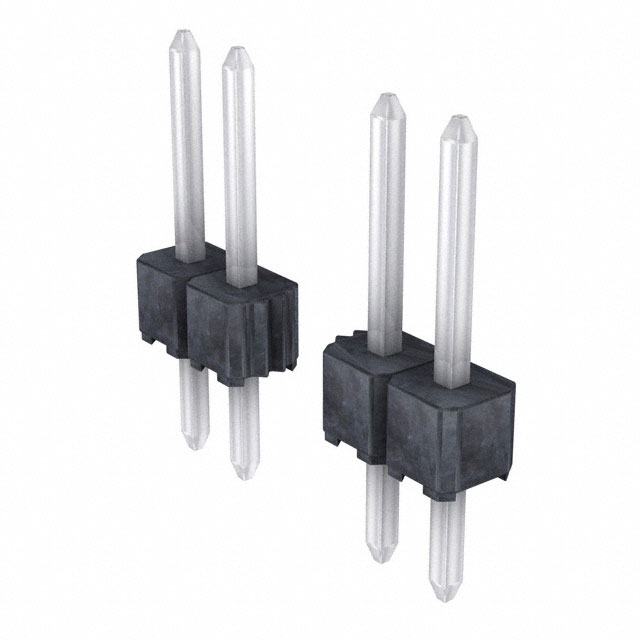

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0901200127
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 7POS .100" STR TIN
Datasheets:	1.0901200127.pdf 2.0901200127.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	115445 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 115445 pcs

Reference Price (In US Dollars)

1 pcs: $0.307

10 pcs: $0.271

100 pcs: $0.234

500 pcs: $0.191

1000 pcs: $0.17

5000 pcs: $0.149

10000 pcs: $0.141

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.307

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0901200127

Part Number	0901200127	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 7POS .100" STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	115445 pcs	Data sheet	1.0901200127.pdf 2.0901200127.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid III 90120	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.478" (12.15mm)	Other Names	090120-0127 090120-0127-E 0901200127-E 90120-0127 90120-0127-E 901200127 901200127-E WM8077
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.098" (2.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 7 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.266" (6.75mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose
