09-48-4118

Affinity Medical Technologies - a Molex company

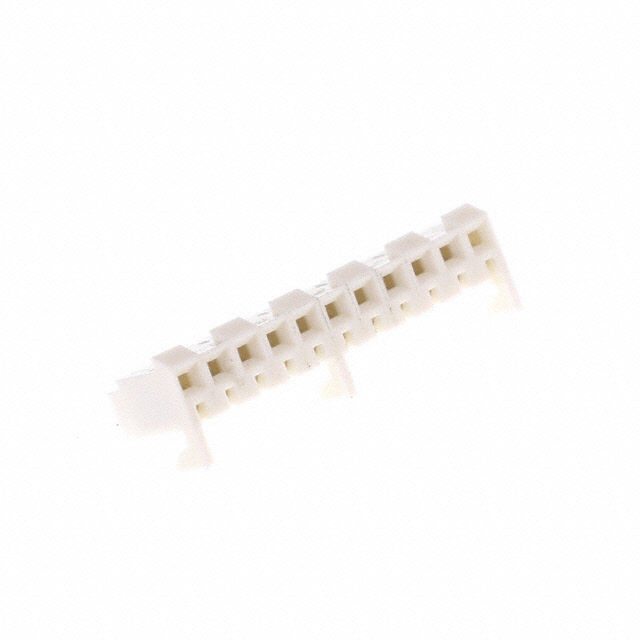

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09-48-4118
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 11POS .156 VERT PCB
Datasheets:	09-48-4118.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51168 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51168 pcs

Reference Price (In US Dollars)

1 pcs: $0.694

10 pcs: $0.629

100 pcs: $0.539

500 pcs: $0.449

1000 pcs: $0.385

5000 pcs: $0.341

10000 pcs: $0.333

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.694

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09-48-4118

Part Number	09-48-4118	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 11POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51168 pcs	Data sheet	09-48-4118.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-4118 0009-48-4118-E 0009484118 0009484118-E 09-48-4118-E 09484118 09484118-E 9484118 A-41815-0067 WM13508
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.449" (11.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	11 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.120" (3.05mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
