09-48-3085

Affinity Medical Technologies - a Molex company

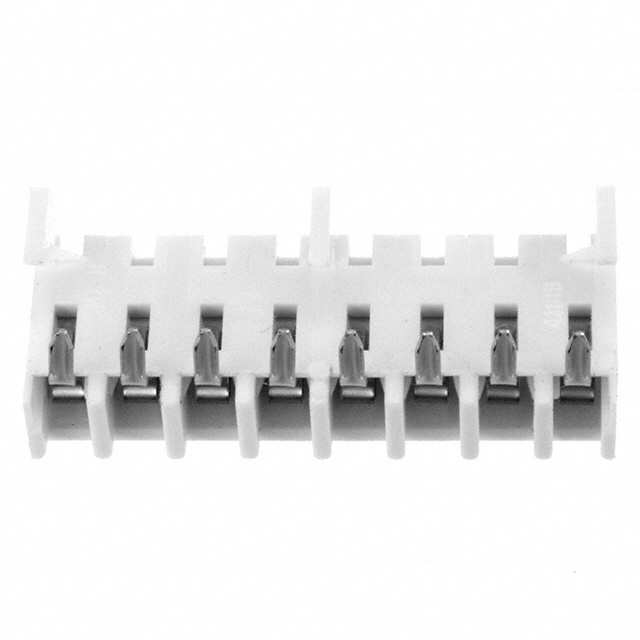

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09-48-3085
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 8POS .156 R/A PCB
Datasheets:	09-48-3085.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47122 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47122 pcs

Reference Price (In US Dollars)

1 pcs: $0.751

10 pcs: $0.682

100 pcs: $0.584

500 pcs: $0.487

1000 pcs: $0.417

5000 pcs: $0.37

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.751

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09-48-3085

Part Number	09-48-3085	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 8POS .156 R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47122 pcs	Data sheet	09-48-3085.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-3085 0009-48-3085-E 0009483085 0009483085-E 09-48-3085-E 09483085 09483085-E 9483085 A-41815-0431 WM13515
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.308" (7.82mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	8 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Gold	Current Rating	4.5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.145" (3.68mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
