09-48-1114

Affinity Medical Technologies - a Molex company

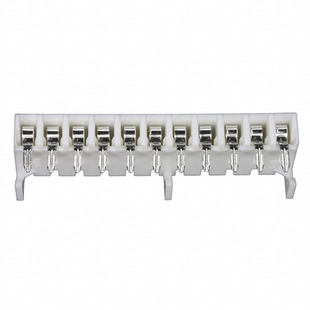

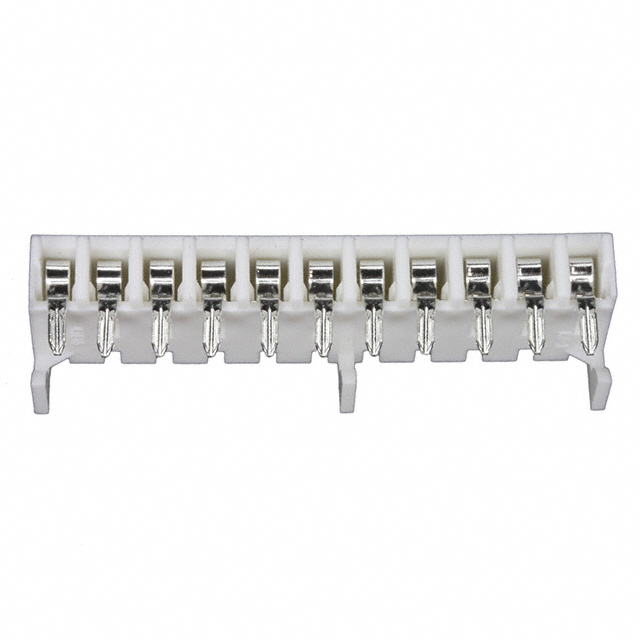

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09-48-1114
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 11POS .156 R/A PCB
Datasheets:	09-48-1114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47262 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47262 pcs

Reference Price (In US Dollars)

1 pcs: $0.741

10 pcs: $0.673

100 pcs: $0.577

500 pcs: $0.48

1000 pcs: $0.412

5000 pcs: $0.365

10000 pcs: $0.357

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09-48-1114

Part Number	09-48-1114	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 11POS .156 R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47262 pcs	Data sheet	09-48-1114.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-1114 0009-48-1114-E 0009481114 0009481114-E 09-48-1114-E 09481114 09481114-E 9481114 A-41815-0011 WM13308
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.308" (7.82mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	11 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.145" (3.68mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
