0878980305

Affinity Medical Technologies - a Molex company

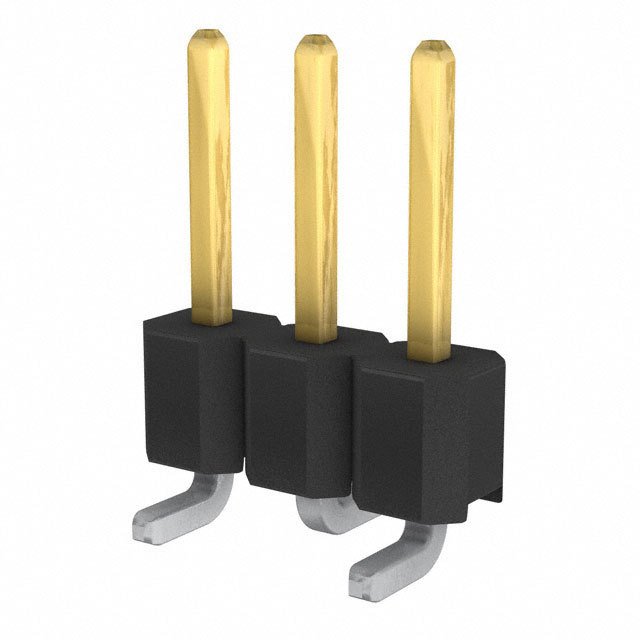

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0878980305
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.54MM SRSW SMTHDR W/OCAP 3CKT
Datasheets:	0878980305.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106664 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 106664 pcs

Reference Price (In US Dollars)

1 pcs: $0.289

10 pcs: $0.254

100 pcs: $0.219

500 pcs: $0.179

1000 pcs: $0.159

7200 pcs: $0.139

14400 pcs: $0.129

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0878980305

Part Number	0878980305	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.54MM SRSW SMTHDR W/OCAP 3CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106664 pcs	Data sheet	0878980305.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid SL 87898	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0878-98-0305 0878980305-ND 878-98-0305 87898-0305 878980305 WM20563
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.098" (2.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 3 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
