0878332620

Affinity Medical Technologies - a Molex companyAffinity Medical Technologies - a Molex company

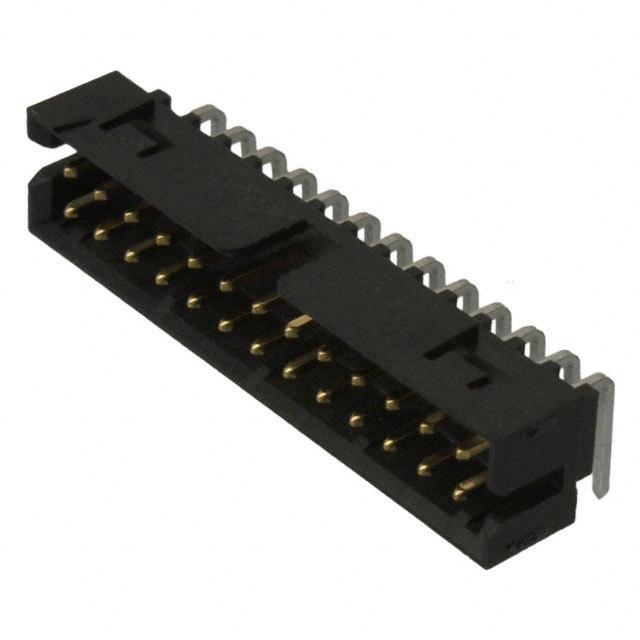

0878332620 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 0878332620
Manufacturer/Brand: Affinity Medical Technologies - a Molex company
Product description HEADER SHRD RA/SLOT 26CKT
Datasheets: 1.0878332620.pdf2.0878332620.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 28323 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 28323 pcs
Reference Price (In US Dollars)
1 pcs
$1.08
10 pcs
$1.038
100 pcs
$0.865
500 pcs
$0.735
1800 pcs
$0.606
5400 pcs
$0.562
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.08

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 0878332620

Part Number 0878332620 Manufacturer Affinity Medical Technologies - a Molex company
Description HEADER SHRD RA/SLOT 26CKT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 28323 pcs Data sheet 1.0878332620.pdf2.0878332620.pdf
Voltage Rating - Termination Solder
Style Board to Board or Cable Shrouding Shrouded - 4 Wall
Series Milli-Grid 87833 Row Spacing - Mating 0.079" (2.00mm)
Pitch - Mating 0.079" (2.00mm) Packaging Tube
Overall Contact Length - Other Names 87833-2620
878332620
WM4221
Operating Temperature - Number of Rows 2
Number of Positions Loaded All Number of Positions 26
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA), Nylon, Glass Filled Insulation Height 0.248" (6.30mm)
Insulation Color Black Ingress Protection -
Features Keying Slot Fastening Type Latch Holder
Detailed Description Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) Current Rating -
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.085" (2.16mm)
Contact Length - Mating 0.141" (3.60mm) Contact Finish Thickness - Post 74.8µin (1.90µm)
Contact Finish Thickness - Mating 15.0µin (0.38µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications Automotive, General Purpose, Telecommunications
