0878322421

Affinity Medical Technologies - a Molex company

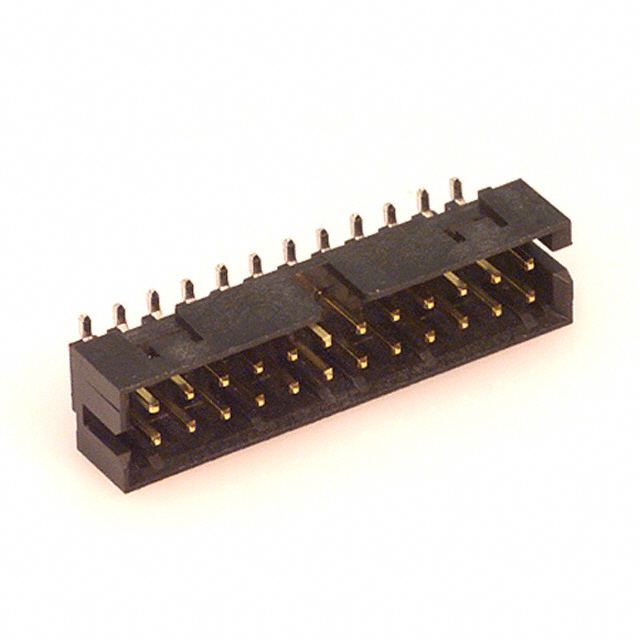

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0878322421
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MGRID HDR SHRD SMT/SLOT/PG 24CKT
Datasheets:	1.0878322421.pdf 2.0878322421.pdf 3.0878322421.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46016 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46016 pcs

Reference Price (In US Dollars)

2000 pcs: $0.858

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.858

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0878322421

Part Number	0878322421	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MGRID HDR SHRD SMT/SLOT/PG 24CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46016 pcs	Data sheet	1.0878322421.pdf 2.0878322421.pdf 3.0878322421.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Milli-Grid 87832	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0878-32-2421 087832-2421 87832-2421 878322421
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.252" (6.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Keying Slot	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount 24 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.141" (3.60mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Telecommunications
