0877602416

Affinity Medical Technologies - a Molex company

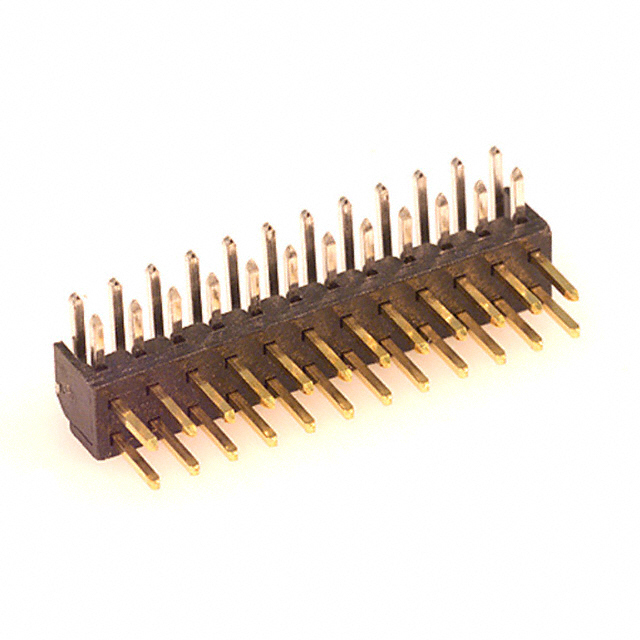

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0877602416
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 24POS 2MM R/A GOLD
Datasheets:	0877602416.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58116 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58116 pcs

Reference Price (In US Dollars)

1 pcs: $0.549

10 pcs: $0.497

400 pcs: $0.385

800 pcs: $0.345

1200 pcs: $0.304

5200 pcs: $0.27

10000 pcs: $0.264

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.549

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0877602416

Part Number	0877602416	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 24POS 2MM R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58116 pcs	Data sheet	0877602416.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Milli-Grid 87760	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	87760-2416 87760-2416-TR100 87760-2416-TR300 877602416 WM18556 WM18556-ND WM18622
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	28 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Insulation Height	0.169" (4.30mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.102" (2.60mm)
Contact Length - Mating	0.157" (4.00mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Telecommunications
