0781710005

Affinity Medical Technologies - a Molex company

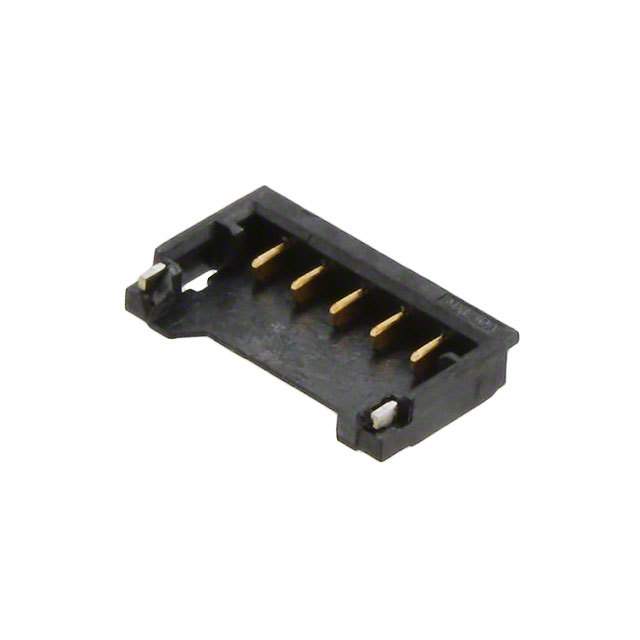

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0781710005
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.20MM WTB HEADER VERT 5POS
Datasheets:	1.0781710005.pdf 2.0781710005.pdf 3.0781710005.pdf 4.0781710005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	277494 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 277494 pcs

Reference Price (In US Dollars)

4500 pcs: $0.112

9000 pcs: $0.101

13500 pcs: $0.099

31500 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.112

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0781710005

Part Number	0781710005	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.20MM WTB HEADER VERT 5POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	277494 pcs	Data sheet	1.0781710005.pdf 2.0781710005.pdf 3.0781710005.pdf 4.0781710005.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	Pico-EZmate 78171	Row Spacing - Mating	-
Pitch - Mating	0.047" (1.20mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	078171-0005 78171-0005 781710005 WM4461TR
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.055" (1.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Friction Lock
Detailed Description	Connector Header Surface Mount 5 position 0.047" (1.20mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Plug
Applications	Automotive, General Purpose, Lighting, Telecommunications
