0781202407

Affinity Medical Technologies - a Molex company

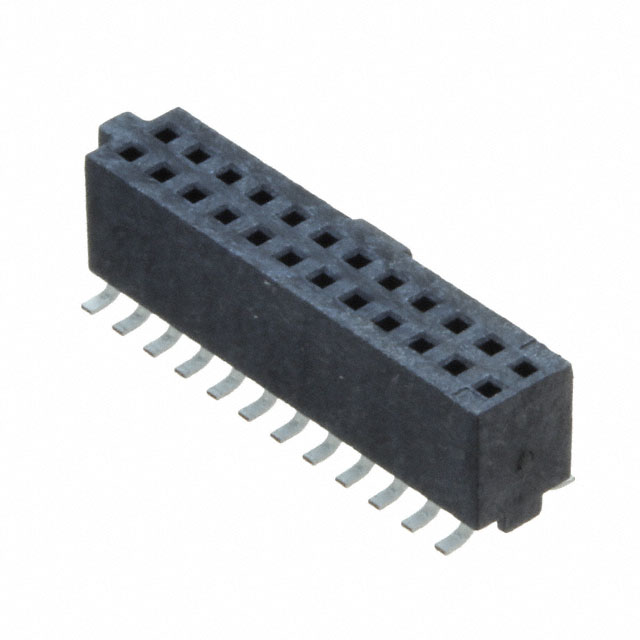

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0781202407
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	SLIM-GRID RECEPTACLE, 24 CIRCUIT
Datasheets:	1.0781202407.pdf 2.0781202407.pdf 3.0781202407.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44348 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44348 pcs

Reference Price (In US Dollars)

1 pcs: $0.672

32 pcs: $0.571

128 pcs: $0.521

512 pcs: $0.434

1024 pcs: $0.372

5024 pcs: $0.33

10016 pcs: $0.323

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.672

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0781202407

Part Number	0781202407	Manufacturer	Affinity Medical Technologies - a Molex company
Description	SLIM-GRID RECEPTACLE, 24 CIRCUIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44348 pcs	Data sheet	1.0781202407.pdf 2.0781202407.pdf 3.0781202407.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Board	Series	Slim-Grid 78120
Row Spacing - Mating	0.050" (1.27mm)	Pitch - Mating	0.050" (1.27mm)
Packaging	Tube	Other Names	078120-2407 0781202407-ND 78120-2407 781202407 WM16692
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Surface Mount	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Insulation Height	0.178" (4.51mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Locking Ramp	Detailed Description	24 Position Receptacle Connector Surface Mount
Current Rating	4.3A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	1.97µin (0.050µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	Automotive, General Purpose, Telecommunications
