0768290006

Affinity Medical Technologies - a Molex company

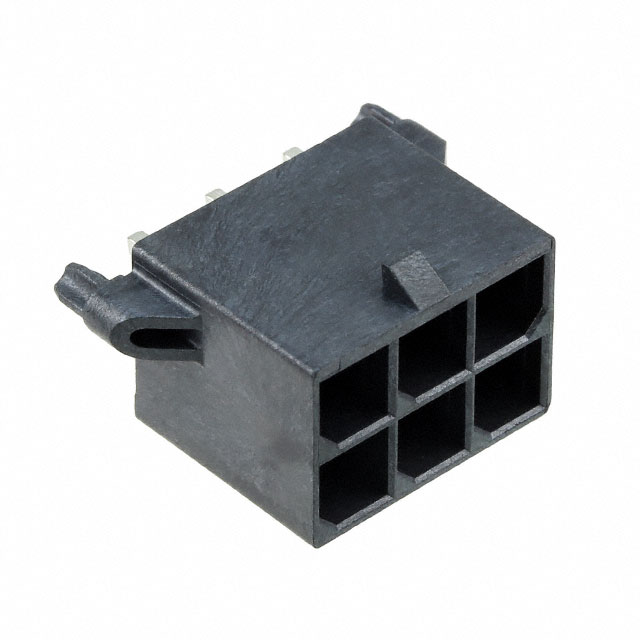

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0768290006
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	DUAL ROW VERT HEADER TIN 6CKT
Datasheets:	1.0768290006.pdf 2.0768290006.pdf 3.0768290006.pdf 4.0768290006.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37387 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37387 pcs

Reference Price (In US Dollars)

1 pcs: $0.798

10 pcs: $0.724

25 pcs: $0.68

50 pcs: $0.65

100 pcs: $0.62

250 pcs: $0.561

960 pcs: $0.502

1920 pcs: $0.428

2880 pcs: $0.414

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.798

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0768290006

Part Number	0768290006	Manufacturer	Affinity Medical Technologies - a Molex company
Description	DUAL ROW VERT HEADER TIN 6CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37387 pcs	Data sheet	1.0768290006.pdf 2.0768290006.pdf 3.0768290006.pdf 4.0768290006.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mega-Fit	Row Spacing - Mating	0.224" (5.70mm)
Pitch - Mating	0.224" (5.70mm)	Packaging	Tray
Overall Contact Length	-	Other Names	076829-0006 76829-0006 768290006 WM11977
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.583" (14.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 6 position 0.224" (5.70mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper	Contact Length - Post	0.147" (3.73mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Telecommunications
