0761369001

Affinity Medical Technologies - a Molex company

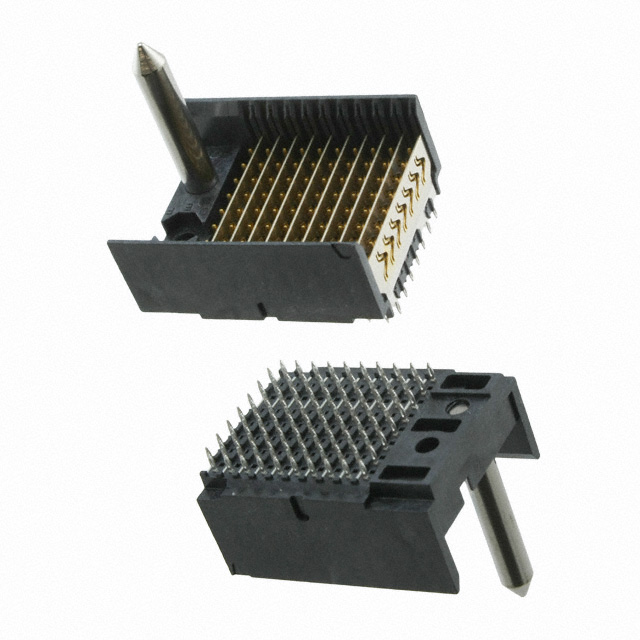

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0761369001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	VHDM-H BP HDR 8X10 GUIDE RIGHT
Datasheets:	1.0761369001.pdf 2.0761369001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3024 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3024 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0761369001

Part Number	0761369001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	VHDM-H BP HDR 8X10 GUIDE RIGHT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3024 pcs	Data sheet	1.0761369001.pdf 2.0761369001.pdf
Voltage Rating	120V	Termination	Press-Fit
Series	VHDM H	Pitch	0.079" (2.00mm)
Packaging	Tube	Other Names	076136-9001 76136-9001 761369001 WM4476
Operating Temperature	-55°C ~ 85°C	Number of Rows	8
Number of Positions Loaded	All	Number of Positions	80
Number of Columns	10	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Shielded
Current Rating	1A	Contact Layout, Typical	-
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Usage	-	Connector Type	Header, Male Pins
Connector Style	VHDM, Guide Left	Color	Black
