0757571481

Affinity Medical Technologies - a Molex company

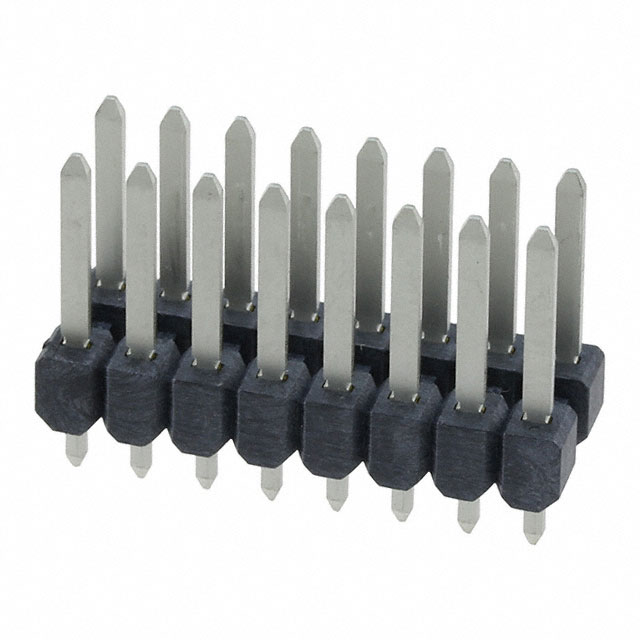

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0757571481
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2X8 VERT BRKWAY TIN
Datasheets:	0757571481.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34105 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34105 pcs

Reference Price (In US Dollars)

1 pcs: $0.965

10 pcs: $0.874

266 pcs: $0.678

532 pcs: $0.625

1064 pcs: $0.535

5054 pcs: $0.475

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.965

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0757571481

Part Number	0757571481	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2X8 VERT BRKWAY TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34105 pcs	Data sheet	0757571481.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	MX150 75757	Row Spacing - Mating	0.236" (6.00mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tube
Overall Contact Length	0.738" (18.75mm)	Other Names	0757571481-ND 75757-1481 757571481 WM12844
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.177" (4.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 16 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Cartridge Brass	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	0.441" (11.20mm)	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	59.0µin (1.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header, Breakaway
Applications	Automotive
