0751020040

Affinity Medical Technologies - a Molex company

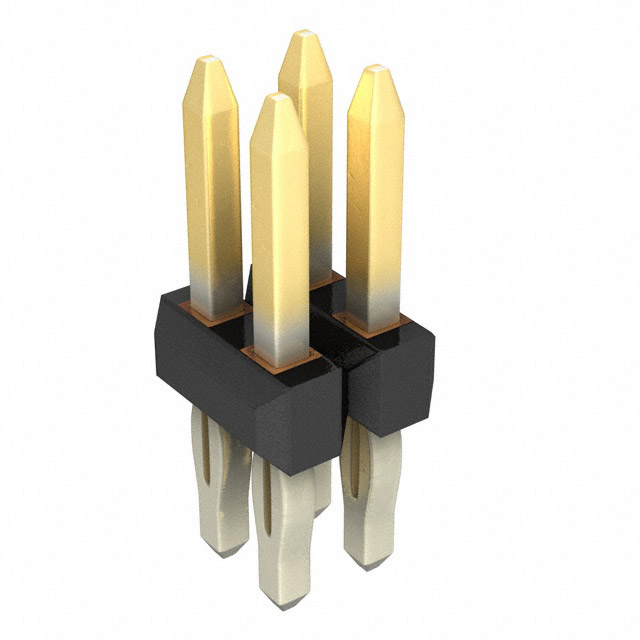

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0751020040
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR DUAL 4POS .100 SRT AU
Datasheets:	0751020040.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10963 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10963 pcs

Reference Price (In US Dollars)

1 pcs: $3.118

10 pcs: $2.983

25 pcs: $2.712

50 pcs: $2.576

100 pcs: $2.509

250 pcs: $2.237

500 pcs: $2.102

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.118

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0751020040

Part Number	0751020040	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR DUAL 4POS .100 SRT AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10963 pcs	Data sheet	0751020040.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 75102	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.517" (13.13mm)	Other Names	075102-0040 075102-0040-E 0751020040-E 75102-0040 75102-0040-E 751020040 751020040-E WM50024-04 WM7504 WM7504-ND
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.090" (2.29mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.187" (4.75mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
