0740991005

Affinity Medical Technologies - a Molex company

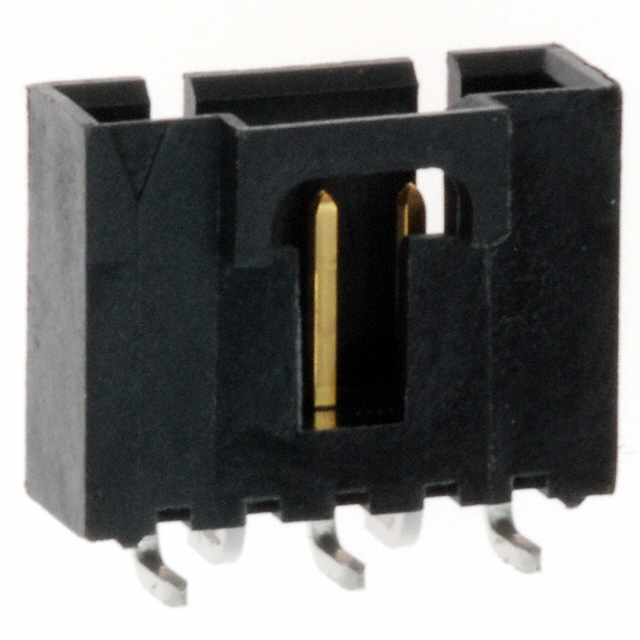

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0740991005
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER .100 VERT 5POS SMD
Datasheets:	0740991005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40710 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40710 pcs

Reference Price (In US Dollars)

1 pcs: $0.961

10 pcs: $0.871

100 pcs: $0.746

500 pcs: $0.622

1680 pcs: $0.515

5040 pcs: $0.473

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.961

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0740991005

Part Number	0740991005	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER .100 VERT 5POS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40710 pcs	Data sheet	0740991005.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 74099	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	074099-1005 074099-1005-E 0740991005-E 74099-1005 74099-1005-E 74099-1005-TB35 740991005 740991005-E WM7205
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.450" (11.43mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount 5 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
