0705550077

Affinity Medical Technologies - a Molex company

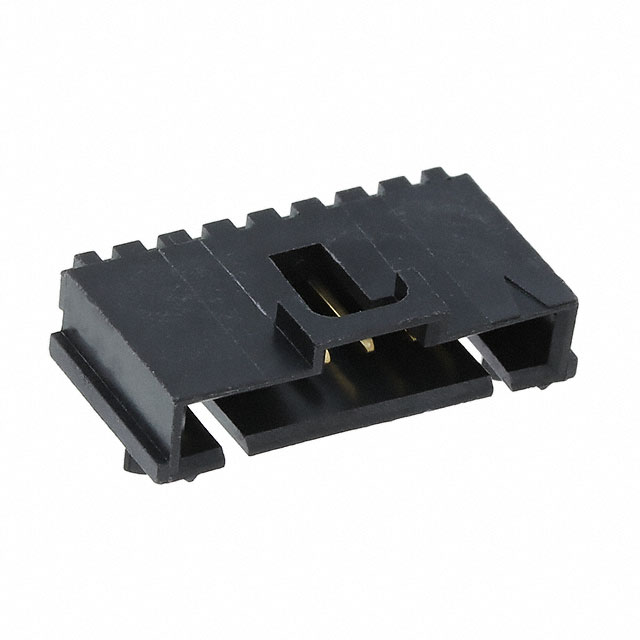

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0705550077
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER R/A GOLD 8POS
Datasheets:	1.0705550077.pdf 2.0705550077.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30161 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30161 pcs

Reference Price (In US Dollars)

1 pcs: $1.048

10 pcs: $1.006

100 pcs: $0.838

880 pcs: $0.65

1760 pcs: $0.587

5280 pcs: $0.545

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.048

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0705550077

Part Number	0705550077	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER R/A GOLD 8POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30161 pcs	Data sheet	1.0705550077.pdf 2.0705550077.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70555	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	070555-0077 0705550077-ND 70555-0077 705550077 WM14789
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.215" (5.45mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
