0705430037

Affinity Medical Technologies - a Molex company

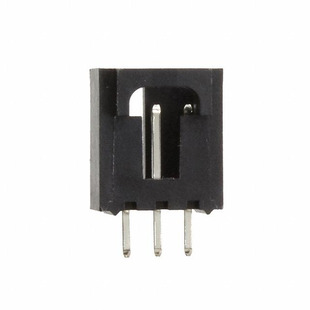

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0705430037
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR VERT 3POS .100 TIN
Datasheets:	1.0705430037.pdf 2.0705430037.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	89183 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 89183 pcs

Reference Price (In US Dollars)

1 pcs: $0.34

10 pcs: $0.297

100 pcs: $0.256

500 pcs: $0.21

2496 pcs: $0.169

7488 pcs: $0.163

12480 pcs: $0.152

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.34

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0705430037

Part Number	0705430037	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR VERT 3POS .100 TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	89183 pcs	Data sheet	1.0705430037.pdf 2.0705430037.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70543	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.470" (11.94mm)	Other Names	070543-0037 070543-0037-E 0705430037-E 70543-0037 70543-0037-E 70543-0037-ND 70543-0037-TB52 705430037 705430037-E A-70543-0037 WM4825
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 3 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
