0705430001

Affinity Medical Technologies - a Molex company

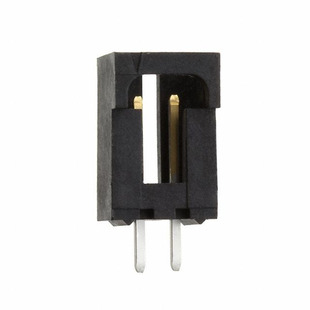

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0705430001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2POS .100 VERT GOLD
Datasheets:	1.0705430001.pdf 2.0705430001.pdf 3.0705430001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	110841 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 110841 pcs

Reference Price (In US Dollars)

1 pcs: $0.289

10 pcs: $0.253

100 pcs: $0.219

500 pcs: $0.179

3456 pcs: $0.144

6912 pcs: $0.139

10368 pcs: $0.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0705430001

Part Number	0705430001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2POS .100 VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	110841 pcs	Data sheet	1.0705430001.pdf 2.0705430001.pdf 3.0705430001.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70543	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.470" (11.94mm)	Other Names	070543-0001 070543-0001-C 0705430001-C 705-43-0001 705-43-0001-P 705-43-0001-TB72 70543-0001 70543-0001-C 70543-0001-TB72 705430001 705430001-C A-70543-0001 WM4800
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 2 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
