0705410009

Affinity Medical Technologies - a Molex company

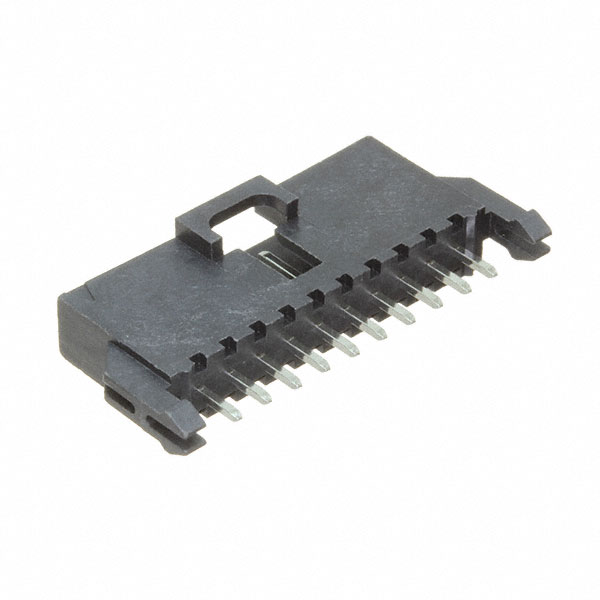

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0705410009
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	SL VERT LATCH HEADER TIN 10POS
Datasheets:	1.0705410009.pdf 2.0705410009.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50730 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 50730 pcs

Reference Price (In US Dollars)

1 pcs: $0.741

10 pcs: $0.673

100 pcs: $0.577

500 pcs: $0.48

1000 pcs: $0.412

5000 pcs: $0.365

10000 pcs: $0.357

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0705410009

Part Number	0705410009	Manufacturer	Affinity Medical Technologies - a Molex company
Description	SL VERT LATCH HEADER TIN 10POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50730 pcs	Data sheet	1.0705410009.pdf 2.0705410009.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70541	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.470" (11.94mm)	Other Names	0705-41-0009 070541-0009 0705410009-ND 705-41-0009 70541-0009 705410009 WM21000
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 10 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
