0705410001

Affinity Medical Technologies - a Molex company

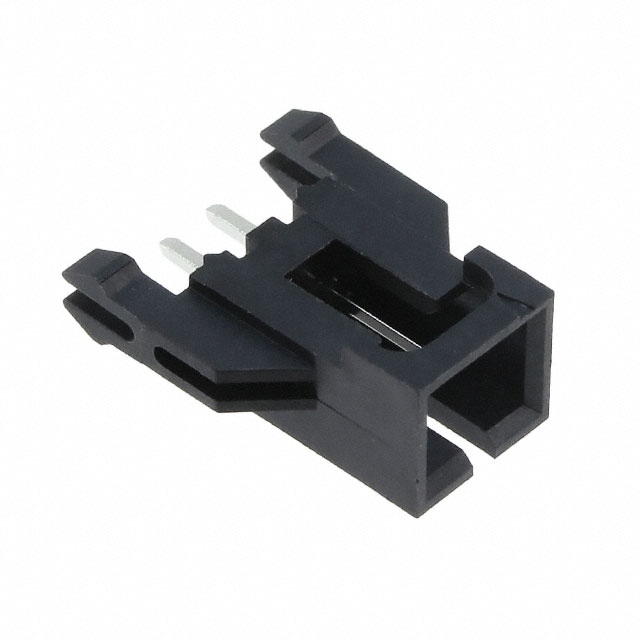

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0705410001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	SL VERT LATCH HEADER TIN 2POS
Datasheets:	1.0705410001.pdf 2.0705410001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	102821 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 102821 pcs

Reference Price (In US Dollars)

1 pcs: $0.289

10 pcs: $0.253

100 pcs: $0.218

500 pcs: $0.178

1000 pcs: $0.159

5000 pcs: $0.139

10000 pcs: $0.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0705410001

Part Number	0705410001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	SL VERT LATCH HEADER TIN 2POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	102821 pcs	Data sheet	1.0705410001.pdf 2.0705410001.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70541	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.470" (11.94mm)	Other Names	0705-41-0001 070541-0001 0705410001-ND 705-41-0001 70541-0001 705410001 WM14047
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 2 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
