0702871097

Affinity Medical Technologies - a Molex company

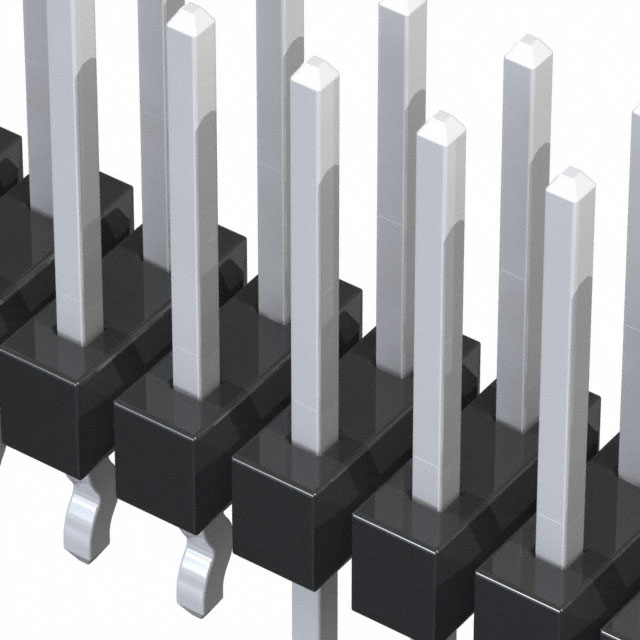

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0702871097
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER BKWY DL TIN 100POS
Datasheets:	1.0702871097.pdf 2.0702871097.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31224 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31224 pcs

Reference Price (In US Dollars)

1000 pcs: $1.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.138

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0702871097

Part Number	0702871097	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER BKWY DL TIN 100POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31224 pcs	Data sheet	1.0702871097.pdf 2.0702871097.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 70287	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.535" (13.59mm)	Other Names	070287-1097 70287-1097 702871097
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	100
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.090" (2.29mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 100 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	0.320" (8.13mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
