0643340300

Affinity Medical Technologies - a Molex company

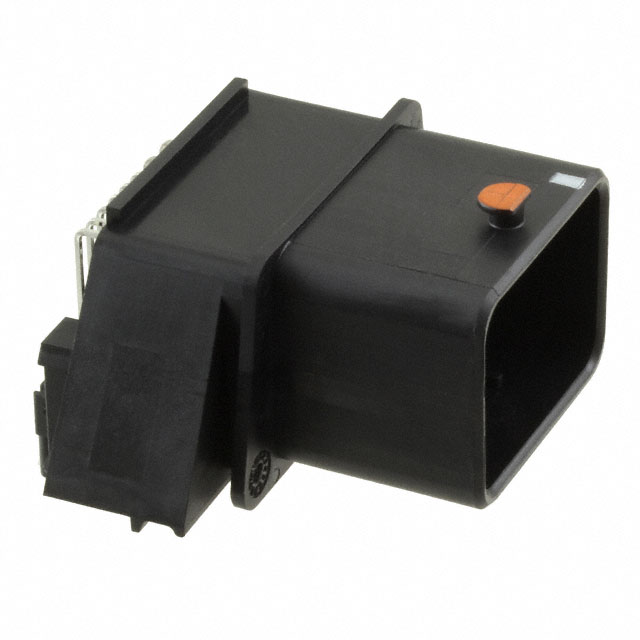

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0643340300
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CMC R/ANGLE HDR ASSY 32CKT BRN
Datasheets:	0643340300.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24179 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24179 pcs

Reference Price (In US Dollars)

1 pcs: $1.376

5 pcs: $1.28

10 pcs: $1.152

25 pcs: $1.088

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.376

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0643340300

Part Number	0643340300	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CMC R/ANGLE HDR ASSY 32CKT BRN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24179 pcs	Data sheet	0643340300.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CMC 64334	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	064334-0300 0643340300-ND 64334-0300 643340300 WM12784
Operating Temperature	-	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	32
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.980" (24.90mm)
Insulation Color	Brown	Ingress Protection	-
Features	Board Guide, Board Lock, Mounting Flange	Fastening Type	Latch Lock
Detailed Description	Connector Header Board Edge, Through Hole, Right Angle 32 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	-
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	78.7µin (2.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
