0559350230

Affinity Medical Technologies - a Molex company

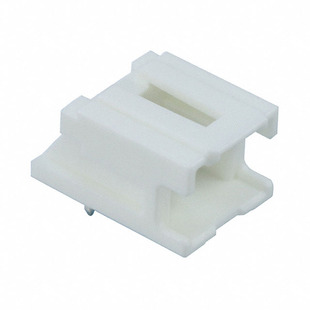

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0559350230
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 WTB PLG HSG ASSY RA 2CKT
Datasheets:	0559350230.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	182921 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 182921 pcs

Reference Price (In US Dollars)

1 pcs: $0.173

10 pcs: $0.164

100 pcs: $0.115

500 pcs: $0.098

1500 pcs: $0.078

6000 pcs: $0.07

10500 pcs: $0.066

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.173

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0559350230

Part Number	0559350230	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 WTB PLG HSG ASSY RA 2CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	182921 pcs	Data sheet	0559350230.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroClasp 55935	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	055935-0230 0559350230-ND 55935-0230 559350230 WM12296
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.264" (6.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.144" (3.66mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Medical
