0559173410

Affinity Medical Technologies - a Molex company

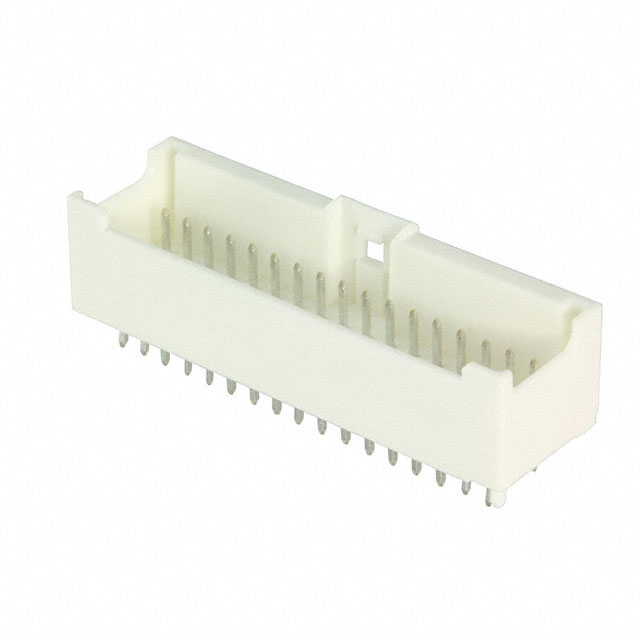

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0559173410
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 WTB DUAL CONN DIP PLG HSG
Datasheets:	0559173410.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56400 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 56400 pcs

Reference Price (In US Dollars)

1 pcs: $0.571

10 pcs: $0.519

350 pcs: $0.402

700 pcs: $0.37

1050 pcs: $0.318

5250 pcs: $0.282

10150 pcs: $0.275

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.571

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0559173410

Part Number	0559173410	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 WTB DUAL CONN DIP PLG HSG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56400 pcs	Data sheet	0559173410.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroClasp 55917	Row Spacing - Mating	0.197" (5.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.366" (9.30mm)	Other Names	055917-3410 0559173410-ND 55917-3410 559173410 WM12281
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	13.2mm
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.384" (9.75mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 34 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.150" (3.81mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Medical
