0559171430

Affinity Medical Technologies - a Molex company

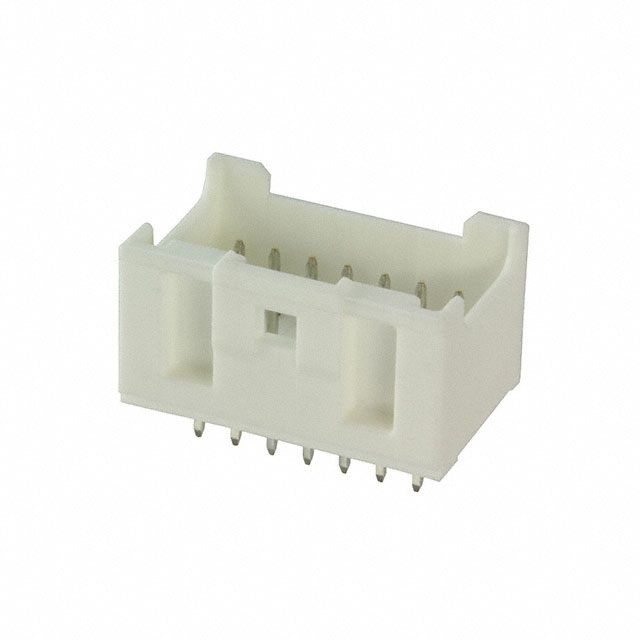

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0559171430
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 WTB DUAL CONN DIP PLG HSG
Datasheets:	0559171430.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40690 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40690 pcs

Reference Price (In US Dollars)

1 pcs: $0.722

10 pcs: $0.655

100 pcs: $0.561

700 pcs: $0.468

1400 pcs: $0.401

5600 pcs: $0.356

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.722

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0559171430

Part Number	0559171430	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 WTB DUAL CONN DIP PLG HSG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40690 pcs	Data sheet	0559171430.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroClasp 55917	Row Spacing - Mating	0.197" (5.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.366" (9.30mm)	Other Names	055917-1430 0559171430-ND 55917-1430 559171430 WM12272
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	13.2mm
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.384" (9.75mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 14 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.150" (3.81mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Medical
