0559092474

Affinity Medical Technologies - a Molex company

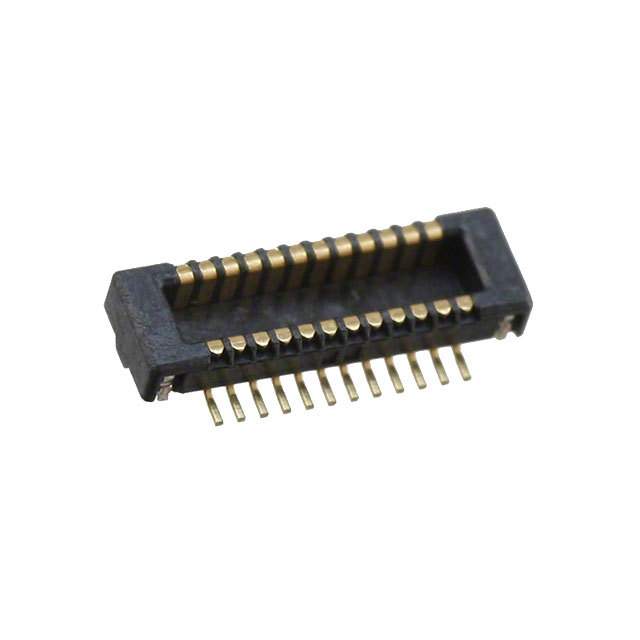

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0559092474
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN PLUG BTB 24POS DL VERT SMD
Datasheets:	0559092474.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	93391 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 93391 pcs

Reference Price (In US Dollars)

2500 pcs: $0.331

5000 pcs: $0.314

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.331

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0559092474

Part Number	0559092474	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN PLUG BTB 24POS DL VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93391 pcs	Data sheet	0559092474.pdf
Series	SlimStack 55909	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	55909-2474 559092474 WM3787TR
Number of Rows	2	Number of Positions	24
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	1.5mm	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.045" (1.14mm)
Features	Solder Retention	Detailed Description	24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Contact Finish Thickness	8.00µin (0.203µm)	Contact Finish	Gold
Connector Type	Plug, Outer Shroud Contacts
