0559090274

Affinity Medical Technologies - a Molex company

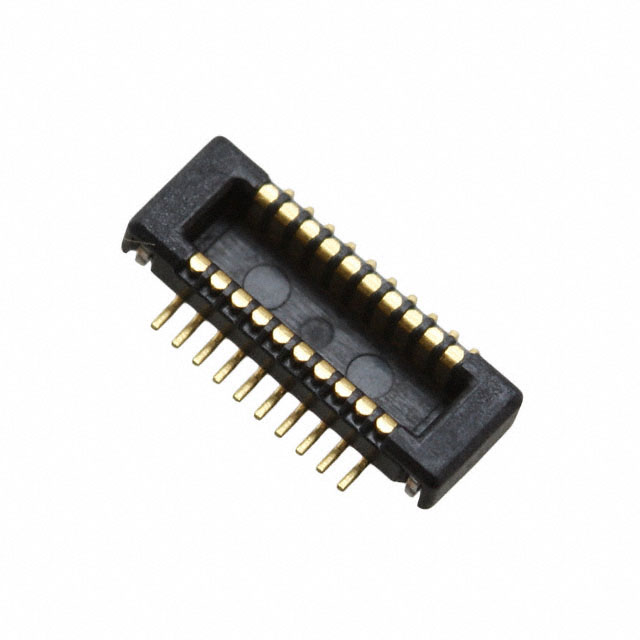

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0559090274
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN PLUG BTB 20POS DL VERT SMD
Datasheets:	0559090274.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	119061 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119061 pcs

Reference Price (In US Dollars)

2500 pcs: $0.283

5000 pcs: $0.269

12500 pcs: $0.263

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.283

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0559090274

Part Number	0559090274	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN PLUG BTB 20POS DL VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	119061 pcs	Data sheet	0559090274.pdf
Series	SlimStack 55909	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	055909-0274 55909-0274 559090274 WM3450TR
Number of Rows	2	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	1.5mm	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.045" (1.14mm)
Features	Solder Retention	Detailed Description	20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Contact Finish Thickness	8.00µin (0.203µm)	Contact Finish	Gold
Connector Type	Plug, Outer Shroud Contacts
