0554871019

Affinity Medical Technologies - a Molex company

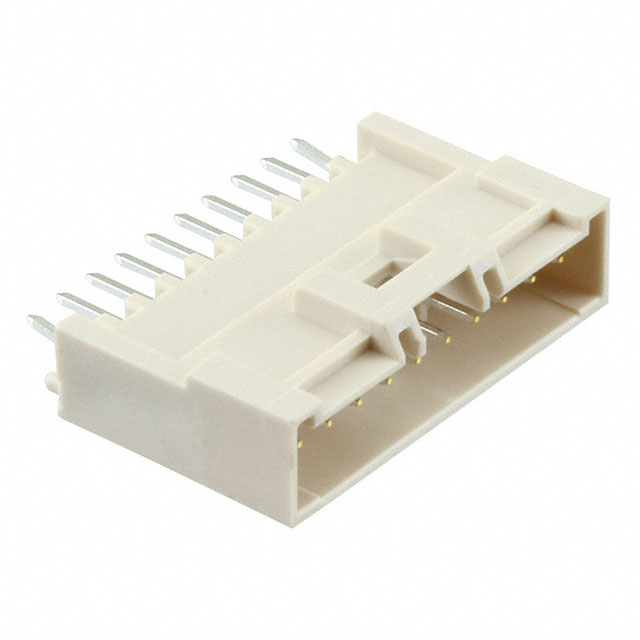

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0554871019
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.0 WTB HEADER ASSY ST 10CKT
Datasheets:	0554871019.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	125175 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 125175 pcs

Reference Price (In US Dollars)

1 pcs: $0.30

10 pcs: $0.264

450 pcs: $0.207

900 pcs: $0.182

1350 pcs: $0.166

5400 pcs: $0.145

10350 pcs: $0.138

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0554871019

Part Number	0554871019	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.0 WTB HEADER ASSY ST 10CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	125175 pcs	Data sheet	0554871019.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroTPA 55487	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	0.604" (15.35mm)	Other Names	055487-1019 0554871019-ND 55487-1019 554871019 WM12901
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	17.7mm
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.520" (13.20mm)
Insulation Color	White	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 10 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.144" (3.66mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
