0554560469

Affinity Medical Technologies - a Molex company

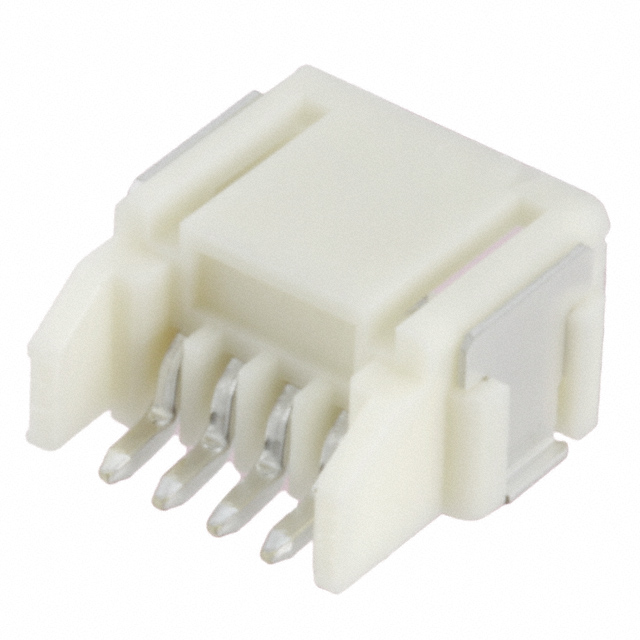

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0554560469
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS R/A 1.25MM SMD
Datasheets:	0554560469.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	240306 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 240306 pcs

Reference Price (In US Dollars)

1250 pcs: $0.138

2500 pcs: $0.125

6250 pcs: $0.121

8750 pcs: $0.113

12500 pcs: $0.111

31250 pcs: $0.109

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.138

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0554560469

Part Number	0554560469	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS R/A 1.25MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	240306 pcs	Data sheet	0554560469.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini Mi II 55456	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	055456-0469 55456-0469 554560469 WM6800TR
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.177" (4.50mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.110" (2.79mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
