0554512470

Affinity Medical Technologies - a Molex company

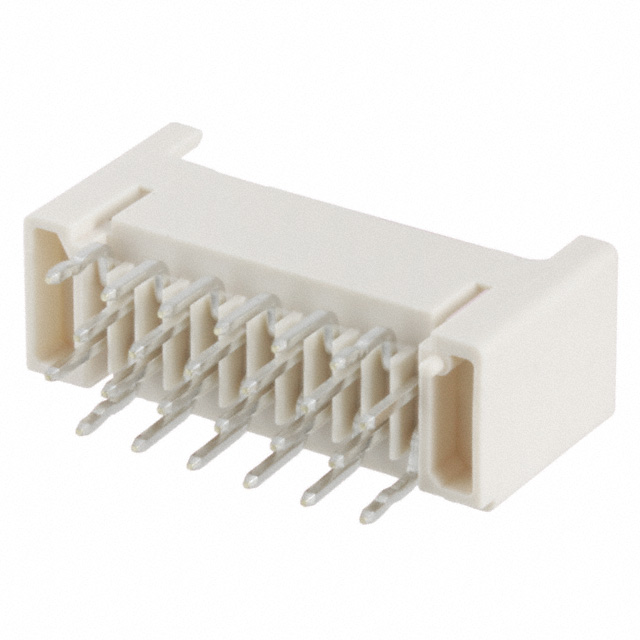

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0554512470
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINISTR 2-ROW WAFER ASSY 24CKT
Datasheets:	0554512470.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62410 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62410 pcs

Reference Price (In US Dollars)

1 pcs: $0.531

10 pcs: $0.483

100 pcs: $0.414

800 pcs: $0.335

1600 pcs: $0.286

5600 pcs: $0.262

10400 pcs: $0.256

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.531

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0554512470

Part Number	0554512470	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINISTR 2-ROW WAFER ASSY 24CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62410 pcs	Data sheet	0554512470.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini Mi II 55451	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	0.343" (8.70mm)	Other Names	0554-51-2470 055451-2470 0554512470-ND 55451-2470 554512470 WM9347
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	9.8mm
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.386" (9.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 24 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	0.130" (3.30mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
