0554470670

Affinity Medical Technologies - a Molex company

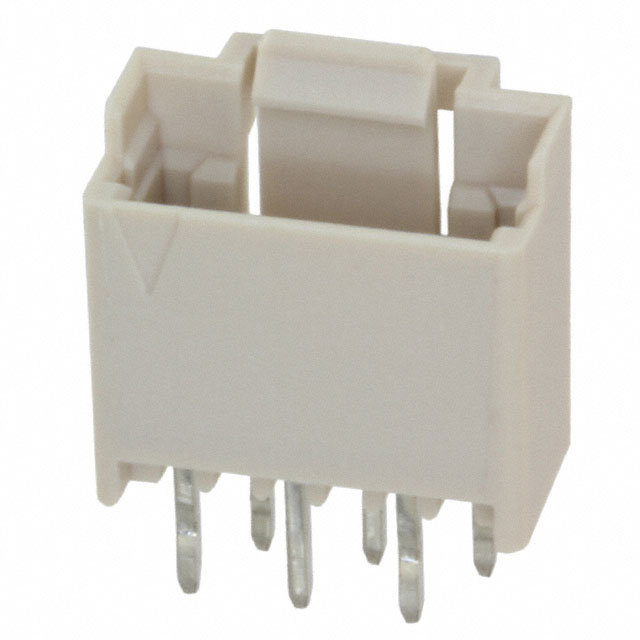

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0554470670
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINI MI II 1ROW WAFER ASSY 6CKT
Datasheets:	1.0554470670.pdf 2.0554470670.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73766 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 73766 pcs

Reference Price (In US Dollars)

1 pcs: $0.527

10 pcs: $0.48

100 pcs: $0.411

500 pcs: $0.343

1500 pcs: $0.284

6000 pcs: $0.26

10500 pcs: $0.255

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.527

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0554470670

Part Number	0554470670	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINI MI II 1ROW WAFER ASSY 6CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73766 pcs	Data sheet	1.0554470670.pdf 2.0554470670.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini Mi II 55447	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	0.323" (8.20mm)	Other Names	0554-47-0670 055447-0670 0554470670-ND 55447-0670 554470670 WM14659
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.4mm
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.303" (7.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 6 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	0.110" (2.79mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
